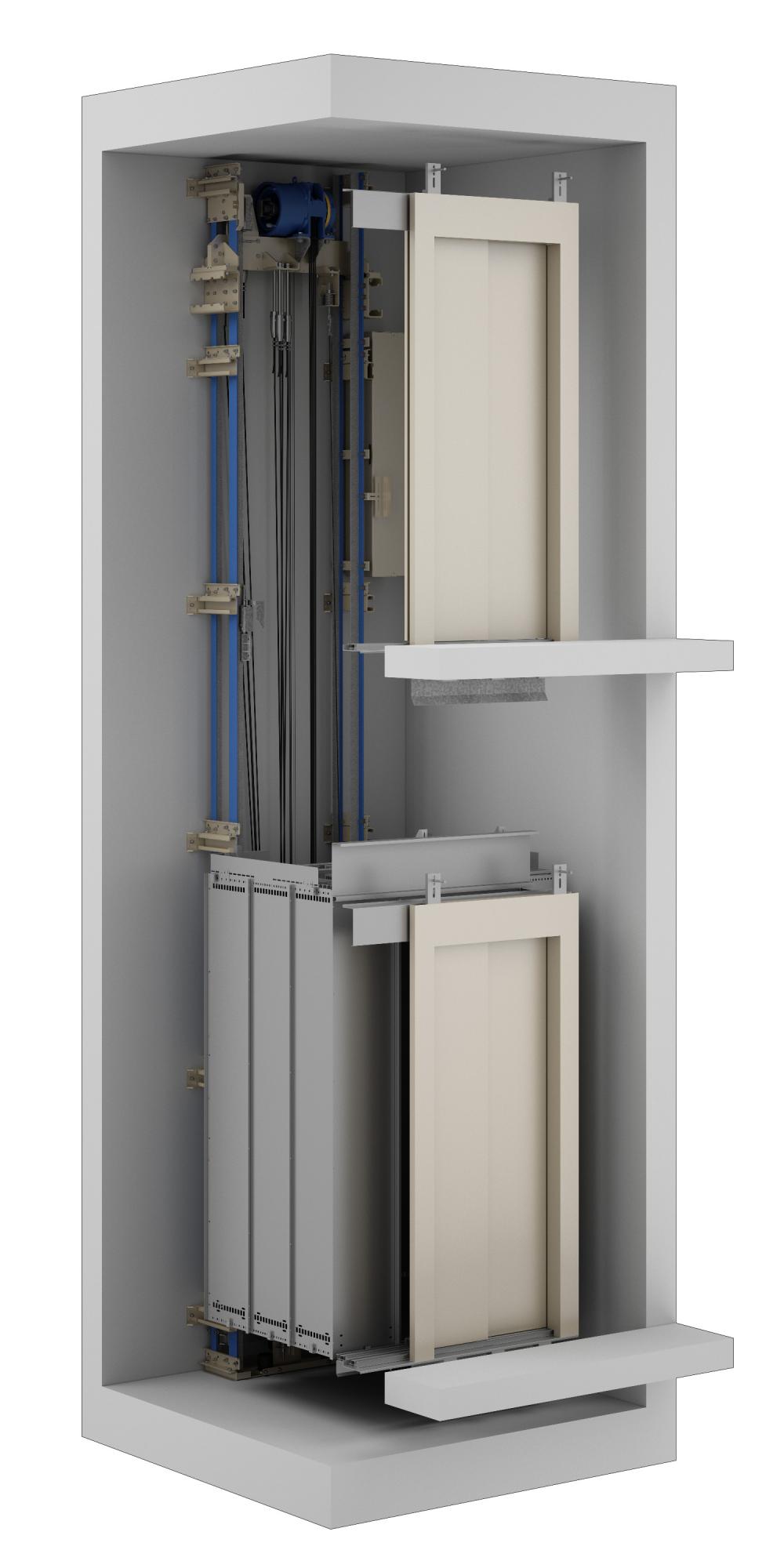

MAISON T PLUS SP

Maison T Plus SP is a unique traction lift solution. Installation can be customised to any architectural need and design, even special and challenging projects. It is an elegant and, above all, truly convenient solution, allowing for perfect fitting within any existing or new building.

Maison T Plus SP is the ideal solution for low pit and headroom shafts and it is available with aluminium or steel shaft construction.

Product

Advantages

Unique tailor-made design
Low noise levels
Οutstanding ride quality
Self-supported shaft
Emergency alarm call management
Eco-friendly

Specifications

Rated Load	320	400
Max Travel (m)	15	15
Max Number of Stops	6	6
Min Pit Depth (mm)	250	250
Min Headroom (mm)	2600	2600
Rated speed (m/s)	0.15 / 0.3 / 0.4	0.15 / 0.3 / 0.4
Car Dimensions (mm)	1000 x 1250	1100 x 1400
Power Supply	Single Phase
Motor Supply	1.1 Kw
Complies with	GB/T21739-2008, EN81.41, EN81.1
Accessibility	W X

Downloads

Brochure Maison T SP

Manual Maison T SP
