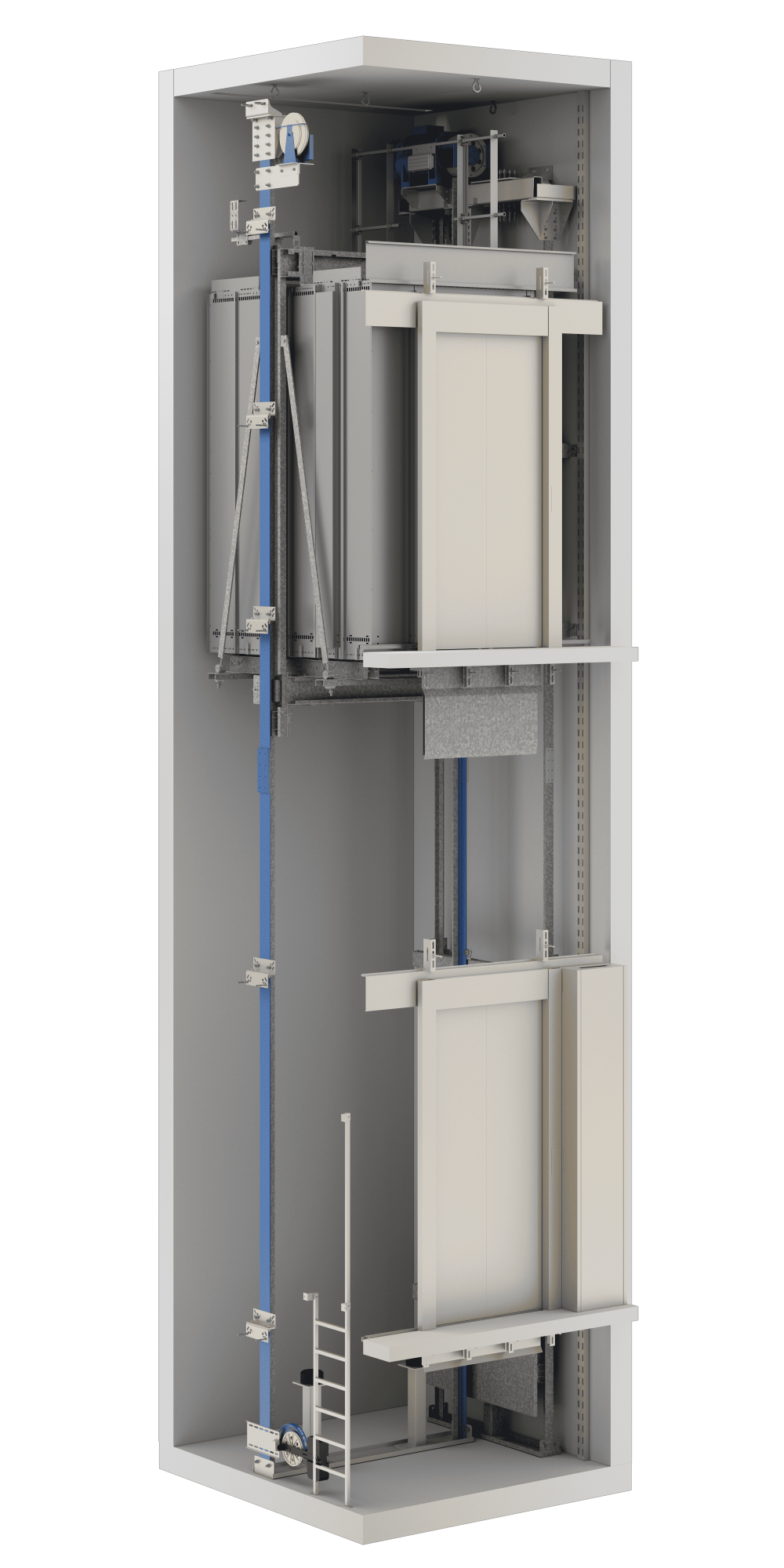

ATLAS GIGAS SP

Atlas Gigas SP is the first choice for rated loads of 1275–2500kg. Offering the option to install a larger car in a standard-sized shaft, Atlas Gigas SP provides optimum space efficiency for buildings with high density passenger flow.

Atlas Gigas SP features KLEEMANN’s premium quality gearless motor and is equipped with a state-of-the-art inverter that provides outstanding ride quality and exceptionally low energy consumption and sound levels.

Featuring specialist cargo lift struts, Atlas Gigas SP provides a robust and dependable solution, also for all your industrial needs.

Product

Advantages

Reliability
Minimum vibrations
Emergency evacuation
Spatial efficiency
Extra safety features
Stopping accuracy
Safe door closing

Specifications

Rated load (kg)	1275 - 2500
Suspension	2:1
Machine room	MRL(MR)
Max rated speed (m/s)	1.0/1.6/1.75
Min pit depth (mm)	for v≤ 1.0m/s 1100 for 1.0≤v≤1.6m/s 1270 for 1.6≤v≤1.75m/s 1315
Min clear headroom (mm)	for v≤ 1.0m/s and Q≤1600 3635mm for v≤ 1.0m/s and Q>1600 3750mm for v≤ 1.6m/s and Q≤1600 3845mm for v≤ 1.6m/s and Q>1600 3960mm for v≤ 1.75m/s and Q≤1600 3905mm for v≤ 1.75m/s and Q>1600 4020mm for v=1 m/s 3800 for v=1.6m/s 4000 for v=1.75m/s 4060"
Max entrances	2 (Through)
Type of Machine	KLEEMANN RN
Panoramic option	Yes
Directives & Standards	EN81-1 (Cabin external height shall not exceed 2340mm Total height of the car bottom (car platform +MDF+ floor) shall not exceed 113mm.) & EN81.20 (Cabin external height shall not exceed 2340mm Total height of the car bottom (car platform +MDF+ floor) shall not exceed 100mm.)
